Product Description

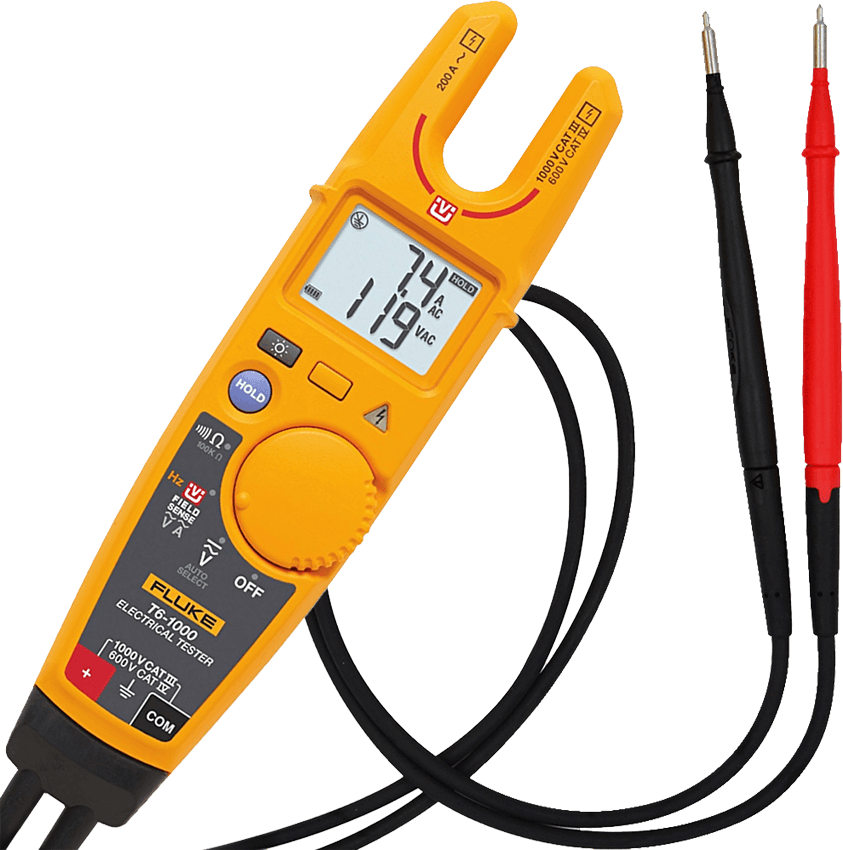

Fluke T6-1000 Electrical Tester with FieldSense, 1000V
Orders over $100 ship free
Now you can measure voltage without test leads. Be safer, faster, more efficient. And be everywhere, testing where it used to be impossible
Measure voltage ? without test leads

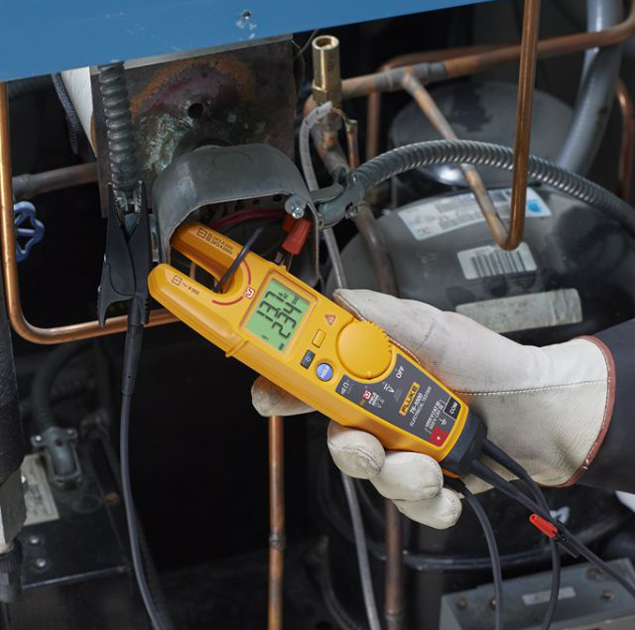

FieldSense technology lets you slide the open fork over a conductor and see the voltage level.1
- Be?safer:?Measure voltage to 1000 V ac through the open fork, without test leads.
- Be?faster:?No need to open covers or remove wire nuts.
- Be?more?efficient:?Simultaneously measure voltage and current.
- Be?everywhere:?17.8 mm open fork is widest in the industry; measure up to 200 A on 4/0 wires (120?mm2).
Measure voltage up to 1000 V ac through the open fork, without test lead contact to live voltage. ?Without opening covers or removing wire nuts. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A. It will change your job. Safer. Faster. Easier.
Product Highlights
- FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage
- Simultaneous voltage and current display ? shows all power supply measurements at a glance for efficient trouble shooting
- 1 to 1000 V ac or dc (T6-1000)
- 0.1 to 200 A ac
- True-rms voltage and current
- Resistance 1 ? to 100 k?
- Frequency measurement 45 Hz to 66 Hz
- Works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening
- HOLD button temporarily freezes the reading for easy viewing
- Easy to read display with backlight
- Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
- Standard two-year warranty; extendable to 4 years through product registration within 45 days of purchase*
?Voltage measurement requires capacitive path to ground, provided through user in most applications. Ground connection via test lead may be required in some situations. * Register product online within 45 days of purchase to extend warranty to four years. See?http://a.fluke.com/registration?for details. Two-year additional warranty offer may be discontinued without notice
| Measurement Specifications | ||||
| Function | Requires test leads | Range | Resolution | Accuracy[1] |
| FieldSense ac voltage true-rms |
No | 1000 V | 1 V | ? (3 % 3 counts) 45 Hz – 66 Hz[2][3] |
| FieldSense ac current true-rms |
No | 200.0 A | 0.1 A | ? (3% 3 counts) 45 Hz – 66 Hz |
| FieldSense frequency (Hz) |
No | 45 Hz ? 66 Hz | 1 Hz | ? (1% 2 counts)[3] |
| Volts ac true-rms | Yes | 1000 V | 1 V | ? (1.5% 2 counts) 45 Hz – 66 Hz |
| Volts dc | Yes | 1000 V | 1 V | ? (1% 2 counts) |
| Resistance | Yes | 2000 ? | 1 ? | ? (1% 2 counts) |
| Yes | 20.00 k? | 0.01 k? | ||
| Yes | 100.0 k? | 0.1 k? | ||
| Safety | 1000 V CAT III 600 V CAT IV |
|||
| Accuracy[1]: ? ( [ % of reading] [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 ?C to 28 ?C (64 ?F to 82 ?F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding. Accuracy[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground. Accuracy[3]: FieldSense is specified from 16 V to 100 % of range. |
||||
| General Specifications | ||
| Calibration | 1-year calibration cycle | |
| Dimensions | 61.1 x 259.3 x 43.8 mm | |
| Jaw opening | 17.8 mm | |
| Weight | 0.35 kg (0.78 lb) | |
| Temperature | Operating | -10 ?C to 50 ?C (14 ?F to 122 ?F) |
| Storage | -30 ?C to 60 ?C (-22 ?F to 140 ?F) | |
| Altitude | Operating | 2,000 m (6,562 feet) |
| Storage | 10,000 m (32,808 feet) | |
| Relative Humidity | 0% to 90%, 5 ?C to 30 ?C (41 ?F to 86 ?F) | |
| 0% to 75%, 30?C to 40 ?C (86 ?F to 104 ?F) | ||
| 0% to 45%, 40?C to 50 ?C (104 ?F to 122 ?F) | ||
| Battery Type and Life | 2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense | |
| Temperature coefficient | 0.1 x (specified accuracy) / ?C for <18?C or >28 ?C | |
| 0.1 x (specified accuracy) / ?C for <18?C or >28 ?C | ||
| Safety | IEC/EN 61010-1: Pollution Degree 2 | |
| Electromagnetic Environment | IEC/EN 61326-1: Portable | |
Includes:
- Attached test leads with removable 4 mm probe caps
- User documentation
