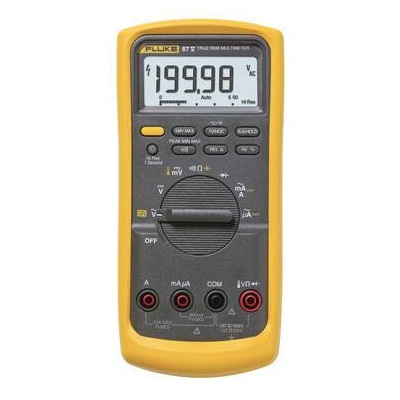

Fluke 87V Industrial Multimeter

Product overview: Fluke 87V Industrial Multimeter

The Fluke 87V Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment – even in loud, high-energy, and high-altitude locations. The 87V is designed so you can work more efficiently.

Easy-access door for fast battery changes without breaking the calibration seal
Analog bar graph for fast changing or unstable signals
Large digit display with bright, two-level backlight for easier reading in low light
Touch Hold keeps readings on display even after removing probes

The 87V lets you identify complex electrical problems fast. It supports accurate measurements on VFDs using a low-pass filter. The meter also captures intermittents as fast as 250 µS using Peak Capture. High-frequency, high-energy noise generated by large drive systems is blocked from your measurements with specially designed shielding.

Built to highest safety standards

All the inputs in the 87V are updated to the third edition of the EN 61010-1 to CAT III 1000 V and CAT IV 600 V. The meter is designed to withstand spikes of more than 8000 V. You also benefit from an audible Input Alert warning if the test leads are placed in the incorrect input jacks for the measurement being made.

Removable holster with built in test lead and probe storage for convenience

The 87V has a removeable holster that also holds a test probe during testing for easier viewing. Relative mode lets you remove test lead resistance, improving accuracy of low-resistance measurements. To make your life even easier, the 87V fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks.

Additional measurement features

The Fluke 87V is designed and built in the U.S. and comes with a lifetime warranty.

For a complete comparison of specifications, please visit our selection guide for digital multimeters.

Specifications
Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.05% + 1)
	Maximum resolution	10 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.7% + 2) True RMS
	AC bandwidth	20 kHz with low pass filter; 3 dB @ 1 kHz
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.2% + 2)
	Maximum resolution	0.01 µA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.0% + 2) True RMS
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	±(0.2% per kHz + 0.1%)
	Maximum resolution	0.1%
Temperature measurement	-200.0 °C to 1090 °C -328.0 °F to 1994.0 °F excluding probe
80 BK temperature probe	-40.0 °C to 260 °C -40.0 °F to 500 °F, 2.2 °C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty cycle range	Accuracy	Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature	–20 °C to + 55 °C
Storage temperature	–40 °C to + 60 °C
Humidity (without condensation)	0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals	CE, CSA, RCM
Mechanical and General Specifications
Size	201 x 98 x 52 mm (with holster)
Weight	355 g 624 g – with holster
Display	Digital	6000 counts updates 4/sec. 19,999 counts in high–resolution mode
	Analog	32 segments, updates 40/sec
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Warranty	Lifetime
Battery Life	Alkaline	~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010–1:2001
Vibration	Per MIL–PRF–28800 for a Class 2 instrument

Klein Tools 501-915 TDR Cable Length Meter

The Klein Tools Cable Length Meter is a portable Time Domain Reflectometry (TDR) cable length tester. It measures cable length, calibrates Velocity of Propagation (VoP) values, finds distance to faults in cables, and provides built-in tone generation for cable tracing. This tester provides accurate cable length measurement for a wide variety of cable types at an affordable price. Includes test leads and a carrying case.

Cable length meter measures length of electrical, data, two-wire and Romex cables up to 3000 feet (914 m)
TDR technology measures Distance-to-Fault, Open or Short, on terminated or unterminated cable
Programmed with Velocity of Propagation (VoP) values for Coax, Data, Romex and other multiwire cables for accurate length measurement within +/-(2-Percent plus 3-Foot/0.9 m) accuracy
Stores custom cable VoP values for consistently accurate results and time savings
Simple interface with full color, interactive LCD
Tones unenergized, open-ended wires for wire tracing (requires Analog Probe (Cat. No. VDV500-123, sold separately)
Coax-BNC or high quality alligator clips for quick, easy connection to test most cable types
RJ45 jack for accurate length measurement of terminated data cables
Measurements can be switched between and metric and imperial units
Includes padded carrying case and leads

Klein Tools 93LDM100C Compact Laser Distance Measure

Klein Tools Compact Laser Distance Measure provides fast and accurate measurements up to 100 feet (30.5 m) with 1/8-Inch (0.3 cm) accuracy and an accuracy of 1/16-Inch (0.2 cm) for the first 30 feet. This compact design fits in a safety vest or shirt pocket to easily carry around a jobsite. The unit automatically saves the last two measurements on the LCD display screen to quickly compare past measurements.

Measures from 2-Inch (5.1 cm) up to 100 feet (30.5 m) with 1/16-Inch (0.16 cm) accuracy for the first 30 feet and accurate to 1/8-Inch (0.32 cm) up to 100 feet (30.5 m)
Laser Distance Measure has lightweight design with pocket clip that makes it easy to carry around a jobsite
Record a single-distance measurement or continuous measurements with a click of a button
Quickly compare the latest measurement with the last 2 measured distances that were automatically saved on the LCD screen
Highly visible reverse contrast LCD display for improved viewing in low light conditions
Toggle between inches, feet and inches, and meters for more precise measurements
Class 2 Laser automatically shuts off after 30 seconds to save battery
Audio alerts when measurement is taken and sound can be disabled
Change the measurement starting point from the top or bottom of the device for more accurate readings
Designed with a lanyard anchor to attach the unit to a tool bag or tool belt; lanyard not included

Klein Tools CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.

Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Non-contact voltage tester integrated into the clamp jaw
High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Measures temperature with a K-Type thermocouple probe
Max/Min, Rel/Zero and Data Hold capability
Auto-power off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment

Klein Tools CL700 Digital Clamp Meter, AC Auto-Ranging TRMS, Low Impedance (LoZ) Mode

Klein Tools CL700 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.

Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
Electronic Tester’s clamp measures AC current and its thermocouple probe measures temperature
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2 m) drop
Low battery indicator and easily accessible battery compartment
Includes a carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)

Klein Tools CL800 Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), Auto Off

Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Thermocouple probe measures temperature
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2m) drop
Low battery indicator and easily accessible battery compartment
Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
Operating altitude to 6562-Foot (2000m)
Includes carrying pouch, test leads, thermocouple with adapter and batteries

Klein Tools CL900 Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), 2000 Amp

The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.

Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
Rugged Klein TOUGH METER industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
Backlit display for clear visibility in environments with low ambient lighting
Dedicated mode for capturing Inrush Current
Non-contact voltage tester integrated into the clamp
Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes

Klein Tools D2000-9NE Lineman’s Plier, 9-inch

These Lineman’s Side-Cutting pliers feature induction hardened cutting knives for long life. The 2000 series blades are designed for heavy-duty cutting of ACSR, screws, nails, and most hardened wire. The high-leverage design provides 46-Percent greater cutting power than other plier designs. Exclusive handle tempering absorbs the ”snap” when cutting wire. Pick up these Klein’s and feel the difference.

Cuts ACSR, screws, nails and most hardened wire
High-leverage design. Rivet is closer to the cutting edge for 46-percent greater cutting and gripping power than other plier designs
Induction hardened cutting knives for long life
Hot-riveted joint ensures smooth action and no handle wobble
Streamlined design with sure-gripping, cross-hatched knurled jaws
Unique handle tempering helps absorb the ”snap” when cutting wire
Precision-hardened plier head for on-the-job toughness
Custom, US-made tool steel
Plastic-dipped handles for comfort and ease of identification
”Handform” handles for full gripping and cutting power
Features combination polished and black-oxide finish

MADE-USA-EN Product Icon

Klein Tools D203-6C Pliers, Needle Nose Side-Cutters with Spring, 6-Inch

These Long-Nose Side-Cutters are spring-loaded for self-opening. The cutting knives are induction hardened for maximum life. Made of forged steel for durability with a long nose for grabbing and looping wire.

Induction-hardened cutting knives for long life
Knurled jaws for sure wrapping and looping
Spring-loaded action for self-opening
Slim head design for working in confined areas
Hot-riveted joint ensures smooth action and no handle wobble
Curved handles provide greater tool control
Plastic-dipped handles for comfort and ease of identification
Custom, US-made tool steel

Klein Tools ET20 WiFi Borescope

The new Klein Tools’ ET20 Borescope can be quickly connected to your smartphone via the built-in WiFi signal, turning the smartphone in your pocket into a smart tool. Install the compatible App on your phone to display, record, store and also share your images and videos via text or email. This Borescope enables you to capture high-quality photo and video directly to your device from up to 30 feet away. It features a waterproof 9 mm camera with durable, armored 6-Foot (1.8 m) flexible gooseneck cable, on-board LED lights, convenient pocket clip and rechargeable lithium-ion battery.

WiFi Borescope transmits and displays video and images directly to your smartphone up to 30 Feet (9 m) away
Waterproof 9 mm camera has 6 on-board, adjustable LED lights and outputs high-quality 640 x 480 images
Tough, armored 6-Foot (1.8 m) long waterproof camera gooseneck maneuvers around obstacles while maintaining rigidity
Battery status indicator tracks the charge level of the lithium-ion battery
Increase and decrease camera LED output either on the Borescope or in the App
The App not only acts as a display, but stores and shares images and videos via text or email
Includes convenient pocket clip, USB charging cable, hook attachment, carrying case, and instructions
The Klein Borescope App is available free at the App Store for iPhone users and Google Play for Android users

Klein Tools ET310 Digital Circuit Breaker Finder with GFCI Outlet Tester

The Klein Tools ET310 Circuit Breaker Finder with Integrated GFCI Outlet Tester is a digital circuit breaker finder used to locate the correct circuit breaker in a panel to which an electrical outlet or fixture is connected. The Transmitter is connected to the electrical outlet or fixture in the circuit while the receiver is used to scan the breakers in the circuit panel. The Transmitter also features a GFCI outlet tester.

This circuit breaker finder can quickly and accurately locate the correct circuit breaker in a panel corresponding to the circuit to which an electrical outlet or fixture is connected
GFCI tester consists of two parts: a Transmitter connected to the electrical outlet or fixture, and a Receiver used to scan the panel to locate the correct breaker
Receiver delivers clear visual and audible indications when the correct breaker has been located
Operates on 90-120V AC circuits
Transmitter incorporates a GFCI outlet tester to inspect the wiring condition at the electrical outlet and test GFCI devices
Transmitter docks in the Receiver for convenient storage as a single item when tester is not is use
Transmitter incorporates a three-pin plug for connecting to North-American-style grounded electrical outlets
The transmitter may be connected to other electrical fixtures using optional accessories which are sold separately (Cat. No. 69411)
Receiver powers off automatically after approximately three minutes of non-use to conserve battery life
Transmitter is powered by the circuit when connected to the electrical outlet or fixture

Klein Tools MM325 Digital Multimeter, Manual-Ranging, 600V

Klein Tools MM325 Multimeter is a manual-ranging multimeter that measures AC/DC voltage, DC current, and resistance. It can also test batteries, diodes, and continuity. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Multimeter measures up to 600V AC/DC voltage, 10A DC current, 2 MOhms resistance, continuity, batteries, and diodes
Lead Alert protection with LED’s for test lead placement
Easy-to-view backlit display for low light environments
Low battery indicator and easily accessible battery and fuse compartment
Durable meter built to withstand a 6.6-Foot (2 m) drop
Includes test leads, batteries and user manual
CAT III 600V safety rating
For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations

Klein Tools NCVT-4IR Non-Contact Voltage Tester Pen, 12-1000 AC V with Infrared Thermometer

Klein Tools NCVT-4IR is a voltage tester that provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires; as well as infrared (IR) thermometer measurements, making it the perfect choice for HVAC professionals.

Voltage Tester designed specifically for HVAC applications
Non-Contact Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, and AC voltage in security, entertainment, communications, environmental control, and irrigation systems
Detects AC voltage from 12 to 1000V with visual and audible indicators
4:1 distance-to-spot ratio IR thermometer with user selectable Degrees Fahrenheit or Degrees Celsius from -22 to 482-Degree Fahrenheit (-30 to 250-Degree Celsius)
Convenient laser pointer to target measurement area for temperature measurement
Backlit LCD display with 0.1-Degree resolution
Auto power-off conserves and extends battery life
Screw-thread battery cap with O-ring ensures dust and water resistance
Lightweight, compact tool with pocket clip provides easy storage and quick access

Klein Tools NCVT2P Dual Range Non-Contact Voltage Tester 12 – 1000V AC

The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-2P is rugged enough for any job site.

Non contact voltage tester’s dual-range capabilities allow tester to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
Electrical voltage tester detects voltage with simultaneous visual and audible indicators
Non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems
Green light indicates no voltage
Lightweight, compact tool with pocket clip provides convenient storage and quick access
Auto power-off feature conserves and extends battery life
CAT IV 1000 V rating provides expanded operation and protection
Screw-thread battery cap with O-ring ensures protection against dust and water ingress
6.6-Foot (2 m) drop protection
IP54: Dustproof and waterproof

Klein Tools NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight, 12 – 1000V AC

Klein Tools NCVT-3 Non Contact Voltage Tester w/flashlight Provides non-contact detection of AC voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems.

Voltage Tester provides non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems
Detects voltage with simultaneous visual and audible voltage indicators
Bright flashlight illuminates work area and may be used independent of voltage detection function
Green light indicates no voltage
Lightweight, compact tool with pocket clip provides convenient storage and quick access
Auto power-off feature conserves and extends battery life
CAT IV 1000V rating provides expanded operation and protection
Screw-thread battery cap with O-ring ensures protection against dust and water ingress
6.6-Foot (2 m) drop protection
IP67: Dustproof and waterproof
Conforms to CE requirements
US Patent 10,073,142, D750,985 and other patents pending

Klein Tools RT110 Receptacle Tester

Klein Tools RT110 Receptacle Tester detects the most common wiring problems in standard receptacles. Conditions indicated: wiring correct, open ground, reverse electrical outlet, open hot, open neutral, hot/ground reversed. Conditions not indicated: quality of ground, multiple hot wires, combinations of defects, reversal of grounded and grounding conductors.

Outlet tester’s light sequence on receptacle tester indicates correct/incorrect wiring
Receptacle tester conforms to UL Std 1436, Certified to CSA Std C22.2 #160
Operating temp: 32-degrees F to 140-degrees F (0-degrees C to 40-degrees C)
Built to withstand a 6.6-foot (2m) drop
Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet
Designed to detect the most common wiring problems in standard receptacles

Klein Tools RT210 GFCI Outlet Tester

Klein Tools Receptacle Testers are designed to detect the most common wiring problems in standard and GFCI receptacles. A convenient chart on the tester helps determine wiring condition in outlet, based on lights results. Conditions indicated: open ground, reverse polarity, open hot, open neutral, hot/ground reversed.

GFCI Tester detects the most common wiring problems in standard and GFCI receptacles
Works on GFCI outlets and confirms operation of the ground fault protective device
Built to withstand a 6.6-foot (2m) drop
Operating temp: 32-Degree to 140-Degree Fahrenheit (0-Degree to 40-Degree Celsius)
Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet

Klein VDV500-820 Pro Tone & Probe Kit

Klein Pro Tone & Probe Kit

Trace wire paths and identify cables in common wiring systems
Includes Tone Generator and Wire Tracing Probe
Toner features 5 tone cadences
Probe features a work light for use in dark spaces
