PELICAN V300 VAULT PISTOL CASE

V300 PELICAN

PELICAN V300 LARGE VAULT PISTOL CASE

Built for hard use, high impact and supreme weather resistance, new Vault series gun cases are the most rugged and secure in their class. Equipped with a host of premium protective features at a price more hunters and shooters can afford, as only the 42-year veteran of hard knocks could deliver.

  • Our largest handgun case, made for multiple handguns, extra magazines and accessories
  • High-impact polymer assures protection of your firearm, via road, trail or air
  • Crushproof, dustproof, and weather-resistant
  • Heavy duty handles are ergonomic and will stand up in even the toughest conditions
  • Four layers of protective foam
  • Two push button latches offer secure closure with easy-open access
DIMENSIONS
Interior (L×W×D)
16.00 x 11.00 x 6.50 in (40.6 x 27.9 x 16.5 cm)
Exterior (L×W×D)
17.54 x 14.21 x 7.16 in (44.6 x 36.1 x 18.2 cm)
MEASUREMENTS
Lid Depth
1.57″ (4 cm)
Bottom Depth
4.93″ (12.5 cm)
Total Depth
6.5″ (16.5 cm)
Int Volume
0.66 ft³ (0.019 m³)
Padlock Hole Diameter
0.46″ (1.2 cm)
WEIGHTS
Weight With Foam
6.69 lbs. (3 kg)
Weight Empty
5.82 lbs. (2.6 kg)
TEMPERATURES
Minimum Temperature
0° F (-18 ° C)
Maximum Temperature
140° F (60 ° C)


PELICAN 1690 TRANSPORT CASE

1690 PELICAN

PELICAN 1690 PROTECTIVE TRANSPORT CASE

Protective transport cases have rugged exteriors to protect against falls and impacts, and big interiors for moving large quantities of items or bulky, heavy equipment. Their large size is conducive for shipping on truck beds or in airplane cargo holds.

Standard Protective Transport Cases

Standard protective cases store, ship, and carry large products and items.


PELICAN 1610-TAN PROTECTOR CASE

1610-TAN PELICAN

PELICAN 1610-TAN TRANSPORT PROTECTOR CASE

The Pelican™ 1610 Transport Case is built with a rough exterior that holds up to any condition. Four durable latches, a heavy-duty retractable extension handle and wheels help transport heavy items long distances. The case also has a built-in purge valve that equalizes air pressure, making it easy to open at high elevations.

DIMENSIONS
Interior (L×W×D)
21.78 x 16.69 x 10.62 in (55.3 x 42.4 x 27 cm)
Exterior (L×W×D)
24.83 x 19.69 x 11.88 in (63.1 x 50 x 30.2 cm)
MEASUREMENTS
Lid Depth
2.05″ (5.2 cm)
Bottom Depth
8.57″ (21.8 cm)
Total Depth
10.62″ (27 cm)
Int Volume
2.23 ft³ (0.063 m³)
Padlock Hole Diameter
0.31″ (0.8 cm)
WEIGHTS
Weight With Foam
22.30 lbs (10.1 kg)
Weight Empty
19.50 lbs (8.8 kg)
Buoyancy
119.93 lbs (54.4 kg)


PELICAN 1550 PROTECTOR CASE

1550 PELICAN

PELICAN 1550 BLACK PROTECTOR CASE

  • Watertight, crushproof, and dustproof
  • 2 level Pick N Pluck™ with convoluted lid foam
  • Open cell core with solid wall design – strong, light weight
  • Comfortable rubber over-molded handle
  • Easy open double-throw latches
  • Stainless steel hardware and padlock protectors
  • Automatic pressure equalization valve – balances interior pressure, keeps water out
  • O-ring seal
  • Personalized nameplate service available
  • Lifetime Guarantee of Excellence
DIMENSIONS
Interior (L×W×D)
18.63 x 14.18 x 7.72 in (47.3 x 36 x 19.6 cm)
Exterior (L×W×D)
20.66 x 17.20 x 8.40 in (52.5 x 43.7 x 21.3 cm)
MEASUREMENTS
Lid Depth
1.75″ (4.4 cm)
Bottom Depth
5.87″ (14.9 cm)
Total Depth
7.62″ (19.4 cm)
Int Volume
1.18 ft³ (0.033 m³)
Padlock Hole Diameter
0.31″ (0.8 cm)
WEIGHTS
Weight With Foam
11.90 lbs (5.4 kg)
Weight Empty
10.58 lbs (4.8 kg)
Buoyancy
69.89 lbs (31.7 kg)
MATERIALS
Body Material
Polypropylene
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven


PELICAN 1520 MEDIUM PROTECTOR CASE

1520 PELICAN

PELICAN 1520 MEDIUM PROTECTOR CASE

Pelican 1520 Medium Protector Case with Pick N Pluck Foam Interior is Watertight, Crushproof, Dustproof and Guaranteed for Life. Carrying Case with easy open Double Throw latches. The Pick N Pluck Foam allows you to create custom foam cushioning without cutting. Conforms to items in all directions. Easily pull out perforated foam squares to match product’s shape.

Interior Dimensions: 18.06 x 12.89 x 6.72 in.
Exterior Dimensions: 19.78 x 15.77 x 7.41 in.
Base & Lid Dimensions: Base: 4.93 in. | Lid: 1.79 in.
Weight: 9.35 Lbs.
Wheels: No Wheels



PELICAN 1506TSA TSA LOCK

1506TSA PELICAN

PELICAN 1506TSA TSA LOCK

The Pelican 1506TSA Lock is a 3 digit combination lock that is TSA approved. This allows the checked luggage to remain protected, because the TSA baggage screeners have special codes and tools which will unlock it. They relock the bag after inspection. While designed for Pelican cases, this lock obviously will work with many other cases. It has a stainless steel hasp that does not corrode.

– Three digit combination lock
– TSA (Transport Security Administration) approved
– Works with TSA Pass Key for worry free travel
– Stainless steel hasp that does not corrode
– Compatible with all Pelican cases


PELICAN 1500 PROTECTOR CASE

1500 PELICAN

PELICAN 1500 BLACK PROTECTOR CASE

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.

Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.



  • Pick N Pluck™ with convoluted lid foam
  • Watertight, crushproof, and dustproof
  • Open cell core with solid wall design – strong, light weight
  • Comfortable rubber over-molded handle
  • Easy open double-throw latches
  • Stainless steel hardware and padlock protectors
  • Automatic pressure equalization valve – balances interior pressure, keeps water out
  • O-ring seal
  • Personalized nameplate service available
  • Lifetime Guarantee of Excellence
DIMENSIONS
Interior (L×W×D)
16.75 x 11.18 x 6.12 in (42.5 x 28.4 x 15.5 cm)
Exterior (L×W×D)
18.50 x 14.06 x 14.06 in (47 x 35.7 x 17.6 cm)
MEASUREMENTS
Lid Depth
1.81″ (4.6 cm)
Bottom Depth
4.31″ (10.9 cm)
Total Depth
6.12″ (15.5 cm)
Int Volume
0.66 ft³ (0.019 m³)
Padlock Hole Diameter
0.31″ (0.8 cm)
WEIGHTS
Weight With Foam
7.94 lbs (3.6 kg)
Weight Empty
7.13 lbs (3.2 kg)
Buoyancy
50.00 lbs (22.7 kg)
MATERIALS
Body Material
Polypropylene
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
TEMPERATURES
Minimum Temperature
-40° F (-40 ° C)
Maximum Temperature
210° F (99 ° C)


PELICAN 1490 PROTECTOR LAPTOP CASE

1500 PELICAN

PELICAN 1490 BLACK PROTECTOR LAPTOP CASE

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.

Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.

  • Fits notebook computers up to 17.3″ L x 11.0″ W x 3.3″ D (43.94 x 27.94 x 8.38 cm)
  • Double safety locking latches with keys
  • Pick N Pluck™ with convoluted lid foam
  • Open cell core with solid wall design – strong, light weight
  • Comfortable rubber over-molded handle
  • Automatic pressure equalization valve – balances interior pressure, keeps water out
  • O-ring seal
  • Stainless steel hardware
  • Personalized nameplate service available
  • Lifetime Guarantee of Excellence
DIMENSIONS
Interior (L×W×D)
17.75 x 11.37 x 4.12 in (45.1 x 28.9 x 10.5 cm)
Exterior (L×W×D)
19.87 x 13.93 x 4.68 in (50.5 x 35.4 x 11.9 cm)
MEASUREMENTS
Lid Depth
1.50″ (3.8 cm)
Bottom Depth
2.62″ (6.7 cm)
Total Depth
4.12″ (10.5 cm)
Int Volume
0.48 ft³ (0.014 m³)
Padlock Hole Diameter
0.25″ (0.6 cm)
WEIGHTS
Weight With Foam
6.50 lbs (2.9 kg)
Weight Empty
5.47 lbs (2.5 kg)
Buoyancy
41.00 lbs (18.6 kg)
MATERIALS
Body Material
ABS
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
TEMPERATURES
Minimum Temperature
-40° F (-40 ° C)
Maximum Temperature
210° F (99 ° C)


PELICAN 1470 PROTECTOR LAPTOP CASE

1470 PELICAN

PELICAN 1470 BLACK PROTECTOR LAPTOP CASE

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.

Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.



  • Double safety locking latches with keys
  • Pick N Pluck™ with convoluted lid foam
  • Open cell core with solid wall design – strong, light weight
  • Comfortable rubber over-molded handle
  • Automatic pressure equalization valve – balances interior pressure, keeps water out
  • O-ring seal
  • Stainless steel hardware
  • Personalized nameplate service available
  • Lifetime Guarantee of Excellence
DIMENSIONS
Interior (L×W×D)
15.70 x 10.70 x 3.87 in (39.9 x 27.2 x 9.8 cm)
Exterior (L×W×D)
16.88 x 13.23 x 4.47 in (42.9 x 33.6 x 11.4 cm)
MEASUREMENTS
Lid Depth
1.47″ (3.7 cm)
Bottom Depth
2.40″ (6.1 cm)
Total Depth
3.87″ (9.8 cm)
Int Volume
0.38 ft³ (0.011 m³)
Padlock Hole Diameter
0.25″ (0.6 cm)
WEIGHTS
Weight With Foam
5.51 lbs (2.5 kg)
Weight Empty
4.28 lbs (1.9 kg)
Buoyancy
24.91 lbs (11.3 kg)
MATERIALS
Body Material
ABS
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
TEMPERATURES
Minimum Temperature
-40° F (-40 ° C)
Maximum Temperature
210° F (99 ° C)
APPROVALS
Certifications
MIL C-4150J


PELICAN 1430 CASE WITH FOAM

1430 PELICAN

PELICAN 1430 BLACK CASE WITH FOAM

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.

Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.

  • Unique top loading design
  • Open cell core with solid wall design – strong, light weight
  • Comfortable rubber over-molded handle
  • 3 level Pick N Pluck™ with convoluted lid foam
  • Easy open double-throw latches
  • Stainless steel hardware and padlock protectors
  • Automatic pressure equalization valve – balances interior pressure, keeps water out
  • O-ring seal
  • Optional shoulder strap available
  • Lifetime Guarantee of Excellence
DIMENSIONS
Interior (L×W×D)
13.56 x 5.76 x 11.70 in (34.4 x 14.6 x 29.7 cm)
Exterior (L×W×D)
16.40 x 8.71 x 13.15 in (41.7 x 22.1 x 33.4 cm)
MEASUREMENTS
Lid Depth
2.00″ (5.1 cm)
Bottom Depth
9.70″ (24.6 cm)
Total Depth
11.7″ (29.7 cm)
Int Volume
0.53 ft³ (0.015 m³)
Padlock Hole Diameter
0.31″ (0.8 cm)
WEIGHTS
Weight With Foam
6.50 lbs (2.9 kg)
Weight Empty
5.60 lbs (2.5 kg)
Buoyancy
59.00 lbs (26.8 kg)
MATERIALS
Body Material
Polypropylene
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
TEMPERATURES
Minimum Temperature
-40° F (-40 ° C)
Maximum Temperature
210° F (99 ° C)
APPROVALS
Certifications
IP67   /  Def Stan 81-41


PELICAN 1060 MICRO CASE

1060 PELICAN

PELICAN 1060 YELLOW MICRO CASE

Pelican 1060 Micro Case – The easy open latch makes access to your gear fast and easy. A thick rubber liner was added for extra protection and also doubles as o-ring seal. It’s stainless steel hardware resists rust and stands up to harsh abuse. Water resistant, crushproof, and dust proof. Includes a carabineer for easy attachment to your gear.

  • Exterior Dimensions: 9.37in x 5.56in x 2.62in
  • Interior Dimensions: 8.25in x 4.25in x 2.25in
  • Lid Depth: 0.69in
  • Bottom Depth: 1.44in
  • Total Depth: 2.13in
  • Interior Cubic Volume: 0.05 cu ft
  • Weight: 1.03 lbs
  • Weight without foam: 1 lbs
  • Buoyancy Max: 2.49 lbs
  • Range Temperature: -10 to 199.4 deg F





PELICAN 1060 MICRO CASE

1060

PELICAN 1060 BLACK MICRO CASE

Pelican 1060 Micro Case – The easy open latch makes access to your gear fast and easy. A thick rubber liner was added for extra protection and also doubles as o-ring seal. It’s stainless steel hardware resists rust and stands up to harsh abuse. Water resistant, crushproof, and dust proof. Includes a carabineer for easy attachment to your gear.

  • Exterior Dimensions: 9.37in x 5.56in x 2.62in
  • Interior Dimensions: 8.25in x 4.25in x 2.25in
  • Lid Depth: 0.69in
  • Bottom Depth: 1.44in
  • Total Depth: 2.13in
  • Interior Cubic Volume: 0.05 cu ft
  • Weight: 1.03 lbs
  • Weight without foam: 1 lbs
  • Buoyancy Max: 2.49 lbs
  • Range Temperature: -10 to 199.4 deg F





PELICAN 1040 MICRO CASE

1040 PELICAN

PELICAN 1040 MICRO CASE

Pelican 1040 Micro Case – The easy open latch makes access to your gear fast and easy. A thick rubber liner was added for extra protection and also doubles as o-ring seal. It’s stainless steel hardware resists rust and stands up to harsh abuse. Water resistant, crushproof, and dust proof. Includes a carabineer for easy attachment to your gear.



Inside Length 6.5 in
Inside Width 3.87 in
Inside Depth 2.125 in
Exterior Depth 2.12 in
Exterior Width 5.06 in
Exterior Length 7.5 in
Inside Height 1.75 in
Exterior Height 2.12 in


Pelican 1615Air Lightweight Wheeled Check-In Case

Pelican 1615Air Lightweight Wheeled Check-In Case

Pelican 1615Air Lightweight Wheeled Check-In Case

Meet Pelican Air. Up to 40% lighter. Guaranteed for life.

The Pelican 1615Air case is the maximum airline dimensions for checked baggage without oversize charges; designed to cut weight without compromising durability. Pelican’s engineers have revolutionized the protector case by reducing structural waste while preserving Pelican’s legendary standards of strength. In development for years, the design team challenged the status quo to “add lightness” in every detail.

With inventive features that anticipate the needs of pros from every line of work, the new Pelican Air models offer innovation with an equal balance of toughness and lightness. Every pro will discover a more effortless user experience and the perfect model in the Pelican Air line.

Shared features across All Pelican Air models:

  • Super-light Proprietary HPX2 Polymer
  • Proven Tough Double-Throw Latches
  • Automatic Purge Valve Balances Air Pressure
  • Watertight O-Ring Gasket
  • New Style “Conic Curve” Lid Shape
  • Crushproof and Dustproof
  • Stainless Steel Hasp Protectors
  • Rubber Overmolded Handles
  • New Removable Polycarbonate Card Holder With Front or Side Placement

Pelican 1615Air:

• Maximum airline check-in size

• Quiet rolling stainless-steel bearing wheels

• Extending trolley handle

• Business card holder

• Automatic purge valve

• Interior dimensions (L x W x D) 29.59″ x 15.50″ x 9.38″

• Exterior dimensions (L x W x D) 32.58″ x 18.40″ x 11.02″

• 14.06 lbs



Pelican 1560 Large Protector Case

Pelican 1560 Large Protector Case

Made in the USA, these tough cases are designed with an automatic purge valve that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware. Our simple and strong double-throw latches keep the lid closed in the roughest handling.

  • Automatic Pressure Equalization Valve – balances interior pressure, keeps water out
  • Comfortable rubber over-molded top and side handles
  • Stainless steel hardware and padlock protectors
  • 2 level Pick N Pluck™ with convoluted lid foam
  • Lifetime Guarantee of Excellence
  • Watertight, crushproof, and dustproof
  • Retractable extension handle
  • Strong polyurethane wheels with stainless steel bearings
  • Easy open Double Throw latches
  • Open cell core with solid wall design – strong, light weight
  • O-ring seal
  • INTERIOR (L X W X D)
    19.92″ x 14.98″ x 9.00″ (50.6 x 38 x 22.9 cm)
  • EXTERIOR (L X W X D)
    22.07″ x 17.92″ x 10.42″ (56.1 x 45.5 x 26.5 cm)
  • BODY: Polypropylene
  • LATCH: ABS
  • O-RING: Polymer
  • PINS: Stainless Steel
  • FOAM: 1.3 lb Polyurethane
  • PURGE BODY: ABS
  • PURGE VENT: 3 Micron Hydrophobic Non-Woven
  • PURGE O-RING: 70 Shore Nitrile
  • LID DEPTH:  2.00″ (5.1 cm)
  • BOTTOM DEPTH:  7.00″ (17.8 cm)
  • TOTAL DEPTH:  9″ (22.9 cm)
  • INT VOLUME:  1.55 ft³ (0.044 m³)
  • WEIGHT WITH FOAM:  20.00 lbs (9.1 kg)
  • WEIGHT WITHOUT FOAM:  17.00 lbs (7.7 kg)
  • BUOYANCY:  115.00 lbs (52.2 kg)
  • MINIMUM TEMPERATURE:  -40° F (-40 ° C)
  • MAXIMUM TEMPERATURE:  210° F (99 ° C)
  • WHEELS:  2
  • EXTENDABLE HANDLE:  yes
  • CERTIFICATIONS: IP67   /  STANAG 4280   /  Def Stan 81-41

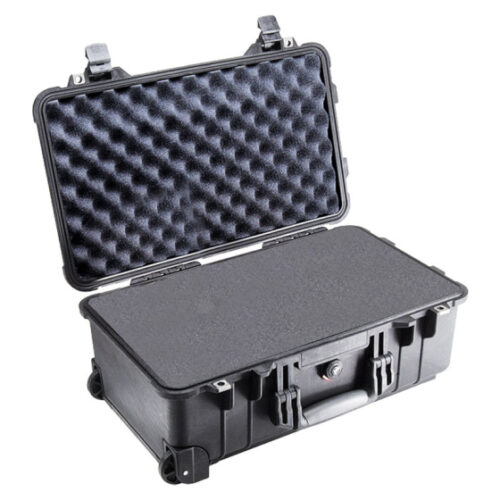

Pelican 1510 Carry-On Case

Pelican 1510 Carry-On Case

  • Waterproof, Crushproof, Dustproof Case
  • Made of Ultra High Impact Copolymer
  • FAA-Approved Maximum Carry-On Size
  • Telescoping Handle & Wheels
  • Durable Stainless Steel Hardware
  • Automatic Pressure Equalization Valve
  • Three-Piece Foam Set is Included
  • Retractable Extension Handle
  • Three-Dial TSA Combination Lock
  • Desiccant Silica Gel Pack
  • INTERIOR (L X W X D)
    19.75″ x 11.00″ x 7.60″ (50.2 x 27.9 x 19.3 cm)
  • EXTERIOR (L X W X D)
    22.00″ x 13.81″ x 9.00″ (55.9 x 35.1 x 22.9 cm)
    • BODY: Polypropylene
    • LATCH: ABS
    • O-RING: Polymer
    • PINS: Stainless Steel
    • FOAM: 1.3 lb Polyurethane
    • PURGE BODY: ABS
    • PURGE VENT: 3 Micron Hydrophobic Non-Woven
    • PURGE O-RING: 70 Shore Nitrile
    • LID DEPTH:  1.79″ (4.5 cm)
    • BOTTOM DEPTH:  5.79″ (14.7 cm)
    • TOTAL DEPTH:  7.58″ (19.3 cm)
    • INT VOLUME:  0.96 ft³ (0.027 m³)
    • WEIGHT WITH FOAM:  13.60 lbs (6.2 kg)
    • WEIGHT WITHOUT FOAM:  11.99 lbs (5.4 kg)
    • BUOYANCY:  64.15 lbs (29.1 kg)
    • MINIMUM TEMPERATURE:  -40° F (-40 ° C)
    • MAXIMUM TEMPERATURE:  210° F (99 ° C)
    • WHEELS:  2
    • EXTENDABLE HANDLE:  yes
    • CERTIFICATIONS: IP67   /  STANAG 4280   /  Def Stan 81-4
  • Hard rolling travel carry-on case


Pelican 1495CC1 Laptop Computer Case

Pelican 1495CC1 Laptop Computer Case

Pelican 1495CC1 Laptop Computer Case

1495CC1 Laptop Case
Interior Dimensions:
18.87″ x 13.12″ x 3.81″ (47.9 x 33.3 x 9.7 cm)
  • Fits up to 17″ laptops
  • 3 dial combination lock included
  • Nylon padded computer sleeve and accessories pouch
  • Lid organizer, shock absorbing tray, and padded shoulder strap
  • Fold down overmolded handle
  • Easy open Double Throw latches
  • Automatic Pressure Equalization Valve
  • Stainless steel padlock protectors
  • Lifetime Guarantee of Excellence
  • Watertight, crushproof, and dust proof
  • Combination Lock Information



CERTIFICATES

1495_DEF_STAN_81-41.pdfDOWNLOAD
1495_IP67.pdfDOWNLOAD


Pelican 1640 Transport Case

Pelican 1640

Pelican 1640 Transport Case

Pelican cases are excluded from free shipping promotion

Interior Dimensions:
23.70″ x 24.00″ x 13.90″ (60.2 x 60.9 x 35.3 cm)
  • Retractable extension handle
  • 4 strong polyurethane wheels with stainless steel bearings
  • Easy open Double Throw latches
  • Open cell core with solid wall design – strong, light weight
  • O-ring seal
  • Automatic Pressure Equalization Valve
  • Fold down handles
  • Stainless steel padlock protectors
  • 3 level Pick N Pluck™ with convoluted lid foam
  • Lifetime Guarantee of Excellence
  • Watertight, crushproof, and dust proof
*This case has internal wheel and/or handle wells that will reduce usable area. Please review for each application.





CERTIFICATES

1640_DEF_STAN_81-41.pdfDOWNLOAD
1640_IP67.pdfDOWNLOAD
